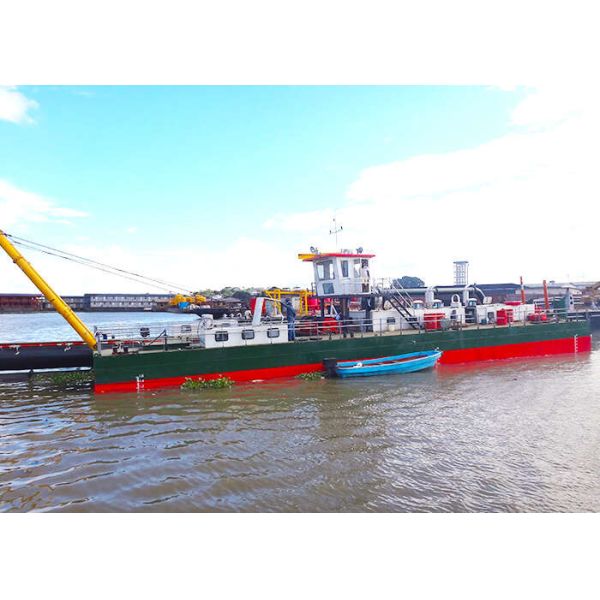

Siemens Control System'S Cutter Suction Dredger Is Easy To Operate And Adaptable
1. Cutter Suction Dredger Feature
1. Simple and quick assembly and disassembly
2. More choices for accessories and floating pipes
3. Can be transported by road, rail or sea
4. Reliable hydraulic system
5. Brand engine, providing continuous and stable power
6. Single operation
7. Professional after-sales service
2. Cutter Suction Dredger Service
1. Make reasonable and practical design of cutter suction dredger according to customer requirements
2. Cutter suction dredger during the warranty period, if there are quality problems, we provide free maintenance
3. Leader Dredger provides overseas services to assemble and test machines
4. Free and professional training for the operators who drive cutter suction dredger
5. Any questions or questions about the product can be supported online or 24 hours.
3. Delivery:
Carried by trucks to the loading seaport, and then by bulk vessels to the destination seaport.
4.LEADER DREDGER LD3700IP TECHNICAL SPECIFICATIONS
Dredging Features |
| Standard dredging depth(m) Maximum mixture | 15m |
| capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
| Dredging pump mode | 5000/450mm |
| | |
Principal characteristics |
| Overall length(m) | 36m |
| Breadth(m) | 7.9m |
| Draught(m) | 1.4m |
| Discharge distance(m) | 1500m |
| Total dry weight approx(MT) | 165MT |
| Ladder length | 21m |
| | |
Dredge pump: Australia technology Pump |
| By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. Bigger working capacity, more efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 3700m³/h |
| Solid capacity(approx) | 740m³/h |
| | |
Engine |
| Main diesel engine(Cummins) | 895kw(1200hp) supply power for dredge pump |
| Total fuel consumption | ≤310kg/hr |
| Extra emergency generator set | 30kw(40Hp) |
5. Cutter Suction Dredger Desgin
• Hydraulic pumps drive cutter, winches spud rams
• Main engine drives pump through gearbox
• pump inside engineroom
• Design of high production long distance and reliability, easy control, simple maintenance
• Australian technology pump
• Famous European-brand electric system and hydraulic system
• Engine room big and cool, and easy to maintain
• Dredge can be equipped with several options such as
Anchor booms/Spud carriages/Increasing The Dredging Depth/Self-Propell/Pump Booster station/GPS dredging System
6. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.
9. Production time:
Operators cabin and living room
Available in stock, or 120-160 working days if not available.
