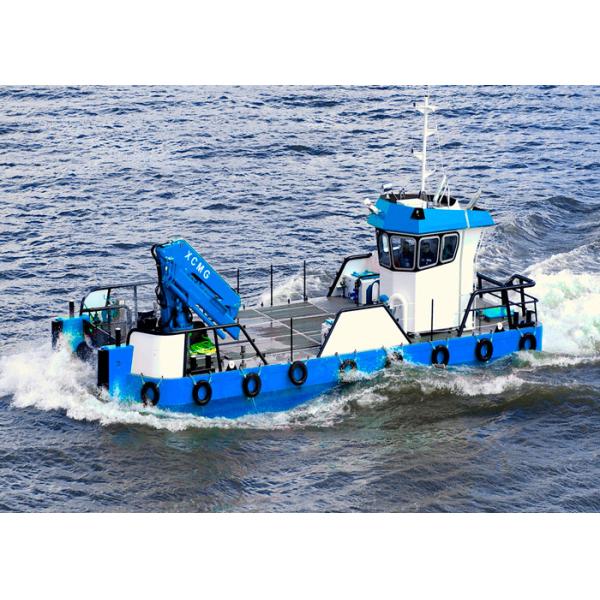

MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V

Brand Name : LD

Model Number : MC1500

Certification : ISO 9001

Place of Origin : China

MOQ : 1 Piece

Payment Terms : L/C, T/T

Supply Ability : 200

Delivery Time : Peak season lead time: 1-3 months ; Off season lead time: 1-3 months

Packaging Details : In Container Or Bulk Vessel

Price : Free Consultation

Length Overall : 15m

Width : 6m

Draft : 1.2m

Engine power(cummins) : 175kwx2

Hydraulic knuckle crane : 350kNm

Fuel tank : 65m³

Bollard pull : 40t

Speed : 8knots

Contact Now

Dredging Equipment Multi Cat Service Boat MC1500 | Leader Dredger

General
Length Overall	15m
Width	6m
Draft	1.2m
Engine power(cummins)	175kwx2
Hydraulic knuckle crane	350kNm
Fuel tank	65m³
Bollard pull	40t
Speed	8knots


PARAMETERS
Wheelhouse	Dismountable type
Multi cat body(marine plate)	8mm
Bottom&Deck Plate(marine plate)	10mm
Cathodic Protection	Zinc anode in 2m interval at each side
Towing hook	SWL: 40 ton
Steering gear	Hydraulic type
Propeller	Cu, Dia ~800mm
Navigation Lights	Refer to MSA rules for River Boat
Life Jackets	2 pieces with 15m life line
Fire Extinguisher	6 pieces


ELECTRIC POWER SUPPL
1. DC24V
2. 4 Batteries for main engine starting
3. 2 Batteries for lighting and control system
4. Solar Panel and one portable diesel generator ~3kw for battery charging

FEATURE
1. Transport diesel, fresh water, person, materials
2. Move the anchor
3. Use a crane to maintain the dredging pipe
4. Push or pull dredger to other places
5. Dredger's other support work
6. With an oil pump, it is convenient to pump oil onto the ship.
7. High power design
